APPLICATIONS
Suitable for use as exit sign in hazardous locations, various outdoor and indoor locations, stairs, etc. in Zone 1 and Zone 2 wherever there is the risk of mains power failure or ccident.

TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Tempered glass
Rated voltage：AC110V-240V  50Hz/60 Hz
Emergency working power：5W
Emergency voltage：1.2V
Battery capacity：0.8 Ah
Emergency duration：>120 minutes
Battery charging time：<24 h
Degree of protection：IP65
Cable entry：G3/4
Corrosion-proof class：WF2

FEATURES
1、Designed for Zone I applications
2、Degree of protection up to IP65
3、LED light source providing long service life
4、Emergency duration up to 120 minutes
5、Self-check function for safe use
6、Low weight allowing for easy installation

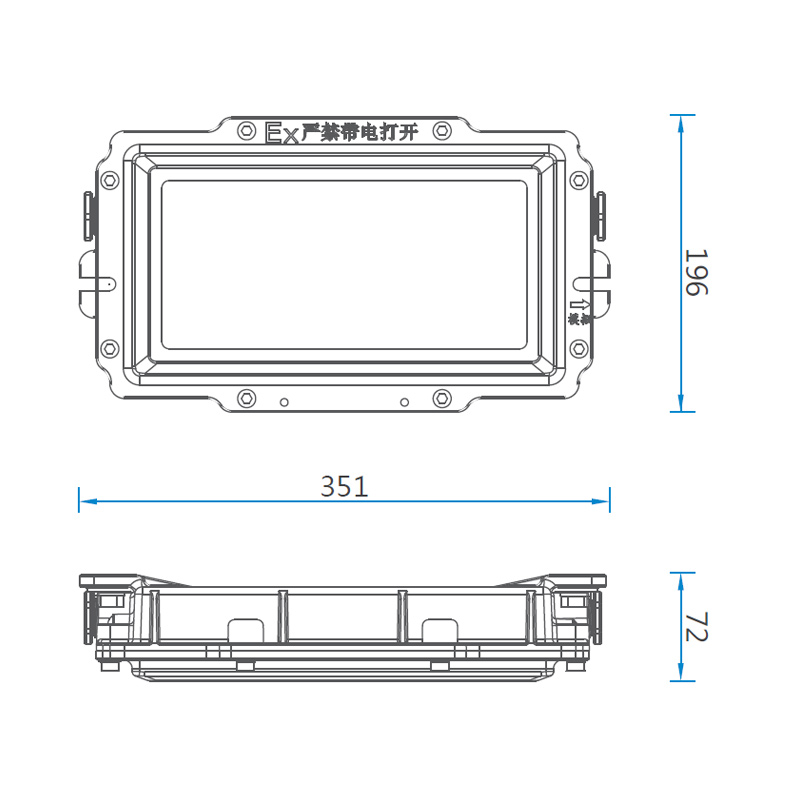

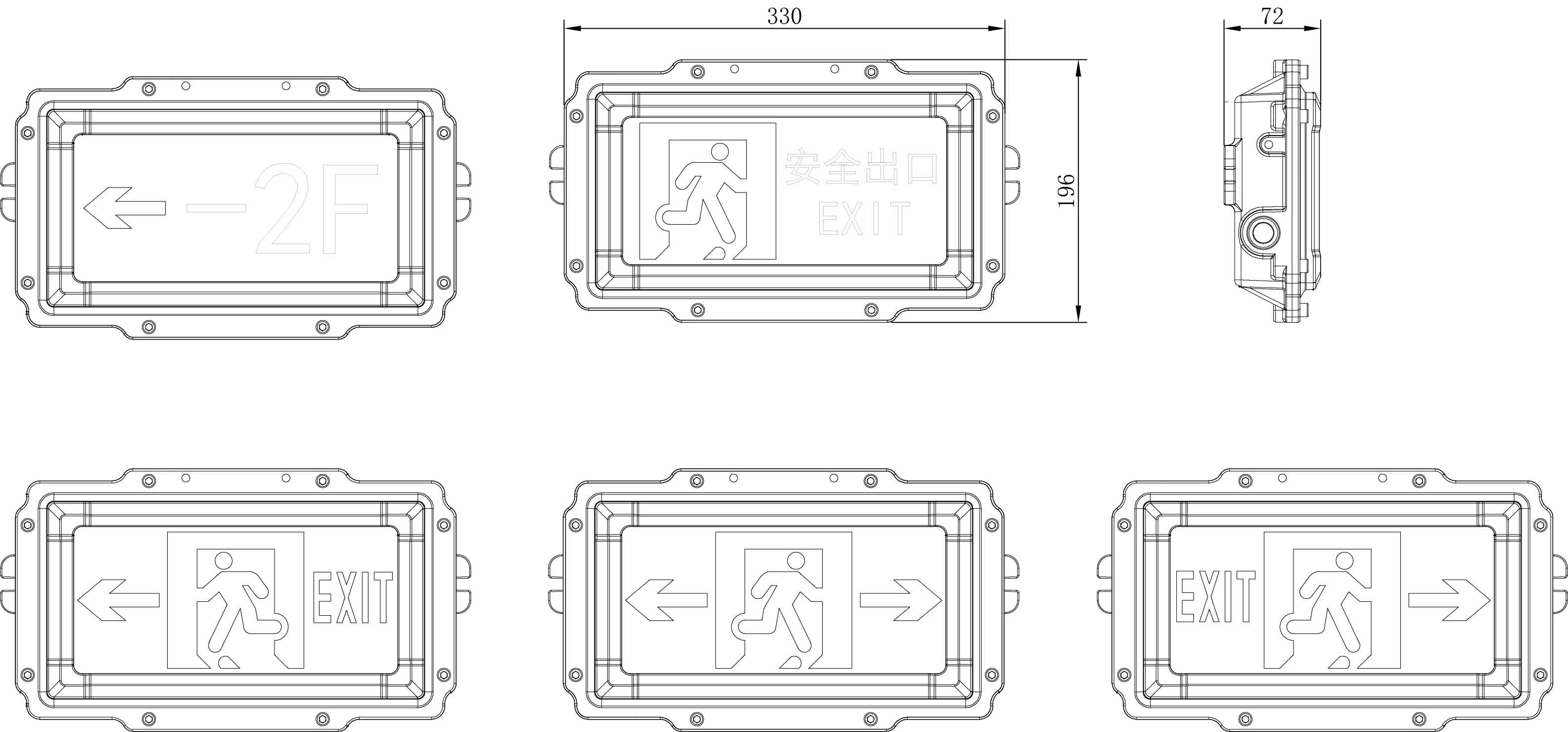

DIMENSION DRAWINGS

Tags: BFE8402 EXPLOSION-PROTECTED EMERGENCY EXIT SIGN
