APPLICATIONS
Suitable for emergency illumination of switchstations, distribution rooms, sub section posts,switch rooms and capacitor rooms in the substations,and other indoor locations in the office buildings.

TECHNICAL DATA
Body material：Aluminum alloy, Polycarbonate
Diffuser：Polycarbonate
Rated voltage：AC110V-240V  50Hz/60 Hz
Output：DC7.4 V
Wattage：3*4W
Luminous efficiency：140 lm / W
Battery Type：Lithium battery
Battery Capacity：4 / 8 Ah
Charging time：≤12 h
Duration：＞8 h ( working light )
Degree of protection：IP65
Corrosion-proof class：WF2

FEATURES
1、Service life of light source up to 50000 hours
2、Battery life up to 1000 cycles
3、Degree of protection IP65 and degree of corrosion resistance WF2
4、Integral structure allowing for easy installation
5、Supplied with a rotatable mounting bracket for adjusting lighting angle

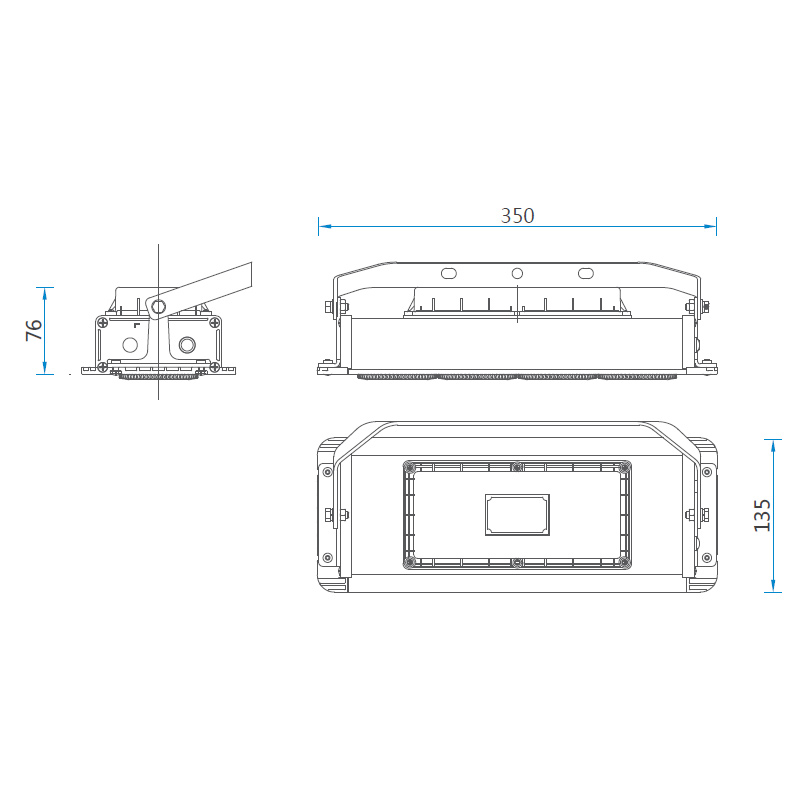

DIMENSION DRAWINGS

Tags: NFE9121A/NFE9121B EMERGENCY LOW BAY LIGHT FITTING
