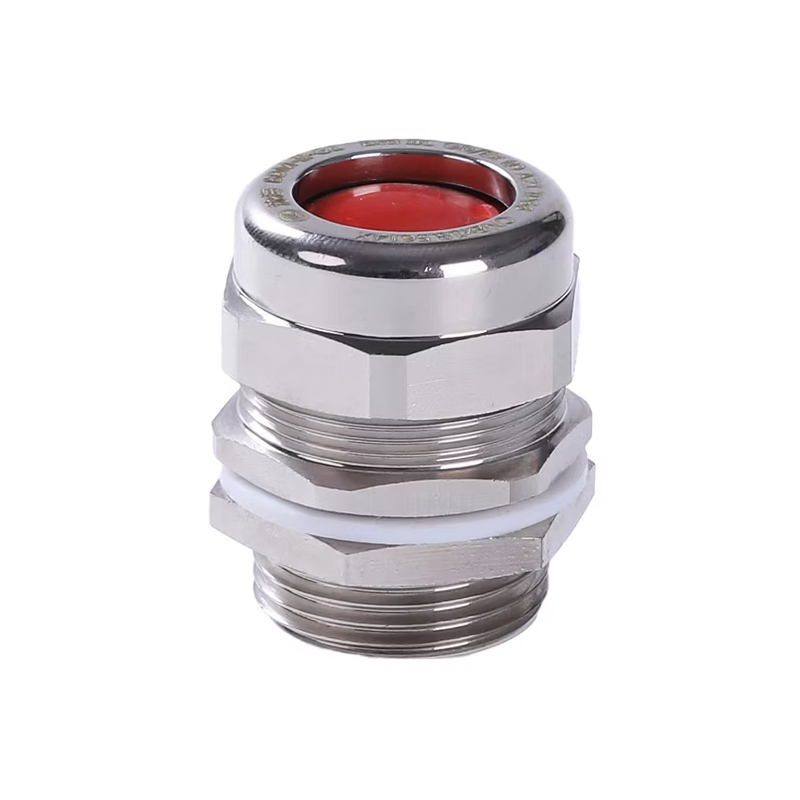

Products Description
Applicable:
1、Zone 1, Zone 2, Zone 21,Zone 22;IIA, IIB,IIC Explosive Gas Environments。
2、Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations。
3、suitable for the introduction of unarmoured cables in the increased safety enclosure。
Parameters
1、It is made of high-quality carbon steel, brass or stainless steel。
2、The mechanical cable clamping device has strong waterproof performance。
3、Security Level: Ex db IIC Gb,Ex eb IIC Gb,Ex tb IIIC T80ºC Db
4、Metric Standards:M20*1.5,M25*1.5,M32*1.5,M40*1.5,M50*1.5,M63*1.5,M75*1.5,M90*1.5,M115*2
5、English Standards: NPT1/2,NPT3/4,NPT1,NPT1 1/4,NPT1 1/2,NPT2,NPT2 1/2,NPT3,NPT4
Tags: Explosion-Proof Cable Gland Ex d Cable Gland
Technical parameter
|
Thread size
|
Applicable cable diameter sealing range(φ)
|
Thread length
|
Length
|
Opposite side/Maximum outer diameter S (φ)
|
||
|
Imperial
|
American
|
Metric
|
||||
|
G1/2
|
NPT1/2
|
M20x1.5
|
8~12
|
15
|
43
|
27/30
|
|
G3/4
|
NPT3/4
|
M25x1.5
|
12~17
|
15
|
45
|
32/35
|
|
G1
|
NPT1
|
M32x1.5
|
15~22
|
17
|
49
|
38/42
|
|
G1 1/4
|
NPT1 1/4
|
M40x1.5
|
20~28
|
17
|
53
|
45/50
|
|
G1 1/2
|
NPT1 1/2
|
M50x1.5
|
28~36
|
17
|
58
|
55/61
|
|
G2
|
NPT2
|
M63x1.5
|
35~48
|
19
|
64
|
68/74
|
|
G2 1/2
|
NPT2 1/2
|
M75x1.5
|
45~56
|
24
|
73
|
85/94
|
|
G3
|
NPT3
|
M90x1.5
|
55~73
|
26
|
74
|
100/110
|
|
G4
|
NPT4
|
M115x2
|
68~91
|
28
|
81
|
125/135
|
