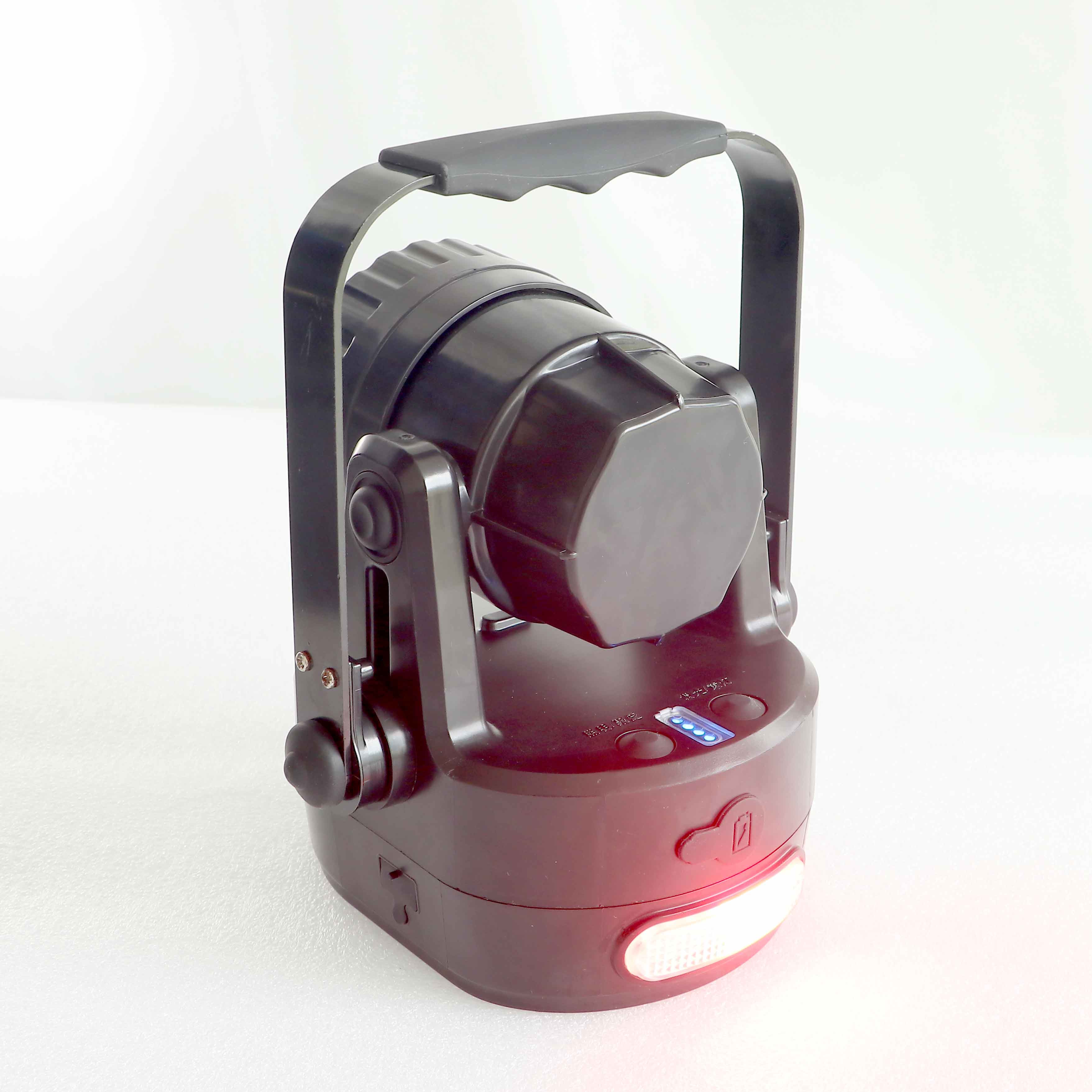

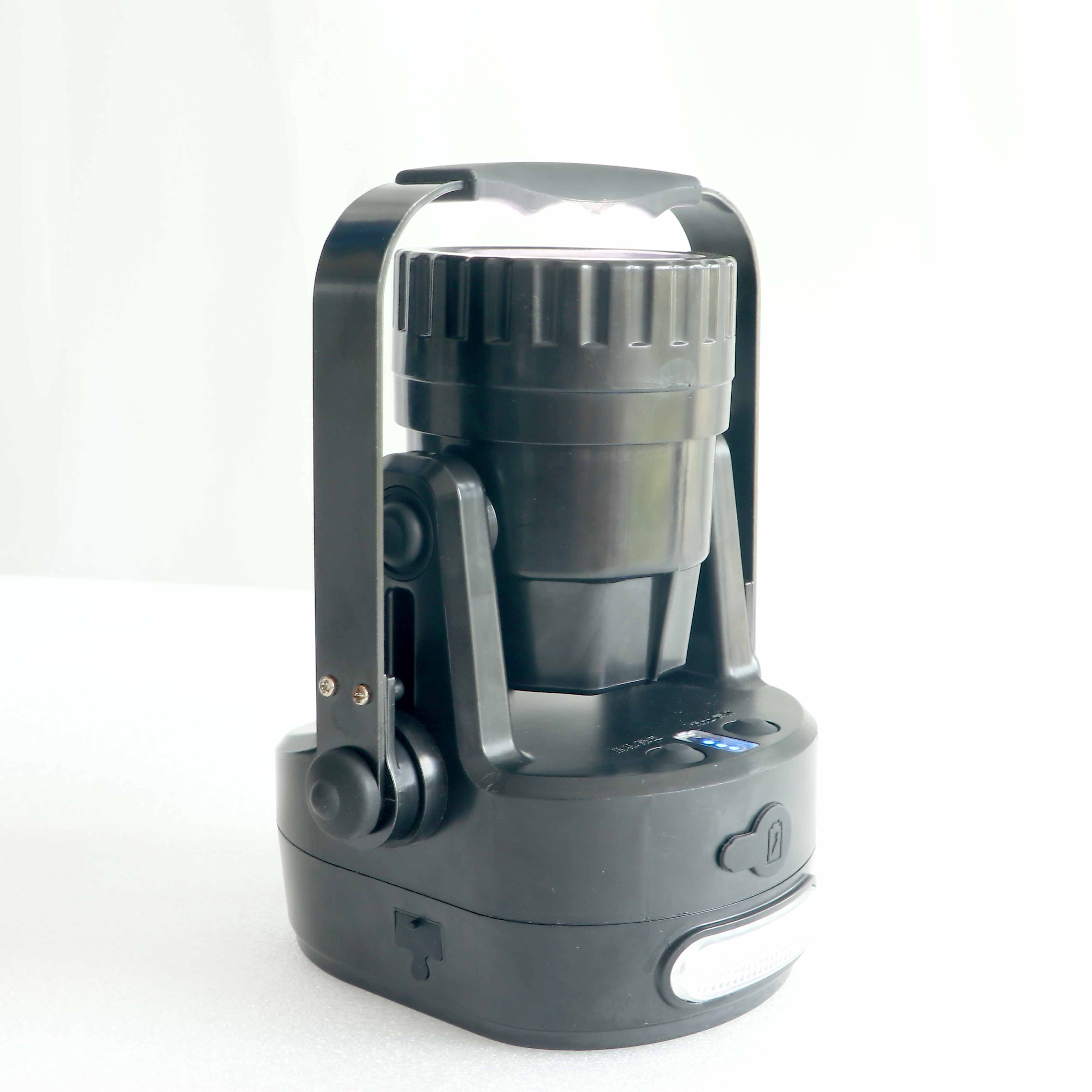

JIW5282 EXPLOSION-PROTECTED HAND LAMP

JIW5282 EXPLOSION-PROTECTED HAND LAMP

  • Rated voltage: AC220V-240V 50Hz/60Hz
  • Battery voltage: 11.1V
  • Battery capacity: 5.0Ah
  • Wattage: 12W
  • Light source Type: LED
  • Duration: ≥8h
  • Degree of protection: IP65

APPLICATIONS1、Designed to provide specific portable lighting for rescue operatio
Send Inquiry
Description
Argument
Products Description

APPLICATIONS
1、Designed to provide specific portable lighting for rescue operations, patrol works, inspection works, goods yards handling operations, etc.
2、Ideal for use as emergency lighting in the tunnels, metros, caves, construction areas, etc.

TECHNICAL DATA
Body material:Polycarbonate
Diffuser:Tempered glass
Rated voltage:AC110V-240V  50Hz/60 Hz
Output:DC11.1V
Wattage:12W
Luminous efficiency:140 lm / W
Battery Type:Lithium battery
Battery Capacity:5 Ah
Charging time:≤3.5 h
Duration: ≥ 10 h ( spotlight )
                  ≥ 24 h ( working light )
                  ≥ 80 h ( low beam )
Degree of protection:IP66
Corrosion-proof class:WF2

FEATURES
1、Designed for Zone I and Zone II applications
2、Available with spotlight, working light and yellow warning light
3、Operating duration: more than 10 hours (high beam mode), more than 24 hours (medium beam mode), more than 80 hours (low beam mode)
4、Fast charging mode allowing for higher than 80% of capacity after 2-hour charging and full charging within 3.5 hours
5、Indication of residual battery capacity and low capacity warning
6、Designed with various carrying modes, such as magnetic adsorption, put on the ground, hand carrying


Tags: JIW5282 EXPLOSION-PROTECTED HAND LAMP

Technical parameter

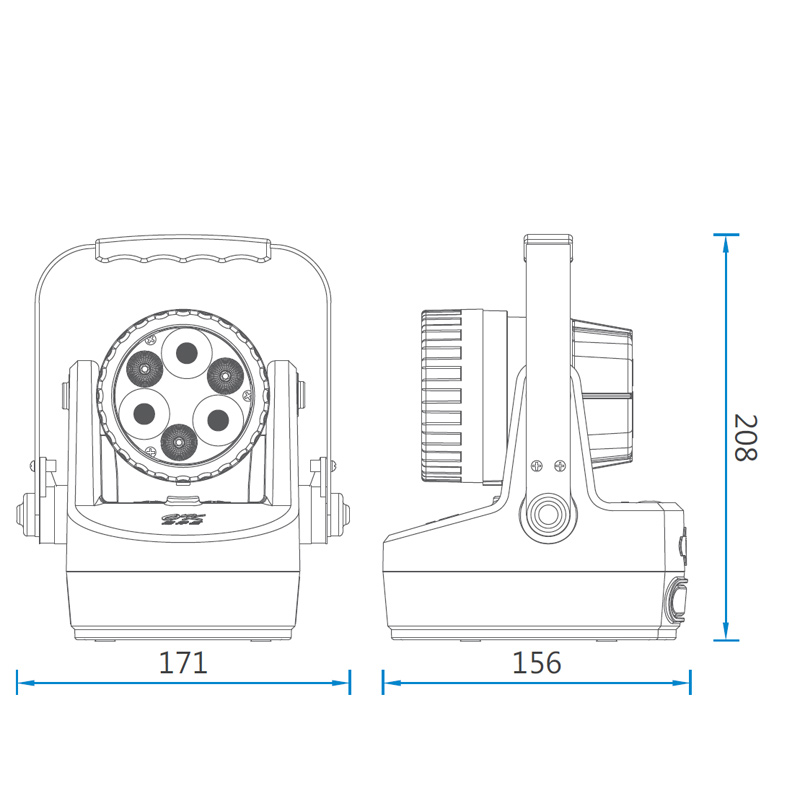

DIMENSION DRAWINGS

JIW5282 EXPLOSION-PROTECTED HAND LAMP
