APPLICATIONS
Suitable for illumination of roads in the plant areas and roads in other areas.

TECHNICAL DATA
Body material：Aluminum alloy with epoxy powder coating
Diffuser：Polycarbonate
Rated voltage：AC110V-240V  50Hz/60 Hz
Wattage：50W 70W 100W
Luminous efficiency：140 lm / W
Mounting height：4 m - 6 m(50 W)
                             6 m - 8 m(100 W)
Degree of protection：IP65
Cable entry：G3/4
Corrosion-proof class：WF2

FEATURES
1、LED light source providing high luminous efficacy and long service life
2、Multiple type options: standard type, the type fitted with a dimmer, and the type fitted with a time switch
3、Degree of protection IP65 and degree of corrosion resistance WF2
4、Lightning strike protections
5、Low weight allowing for easy installation

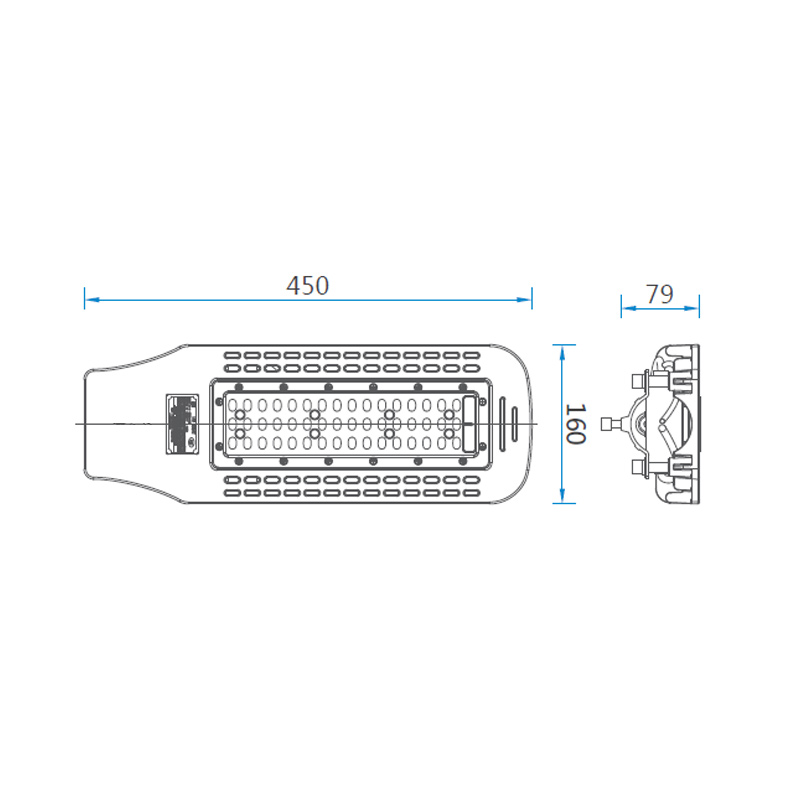

DIMENSION DRAWINGS

Tags: NLC9616 LED ROAD LAMP SERIES
