Products Description
APPLICATIONS
Class I. Zone 1 and Zone 2
Class I, Division 2, Groups A, B. C, D
Suitable for illumination of hazardous locations in various industries
FEATURES
Incandescent lamps: Max. 60W; LED: Max. 25W
Cable on request
Handle in plastic, with control pushbutton
Powder coated wire guard, white
Toughened glass cover resistant to temperature changes
TECHNICAL DATA
No | Parameter | Value | |
1 | Rated voltage | 100V-220V 50/60Hz | |
2
|
Light source
| Wattage | LED 5w 8w 10w 15w |
Type | LED | ||
Luminous efficiency | 110 lm / W | ||
Life | 100000h | ||
3 | Degree of protection | IP66 | |
4 | Ambient temperature | 20 ºC ~ +55 ºC | |
Tags: BSX-60 Explosion Proof Hand Lamps
Technical parameter

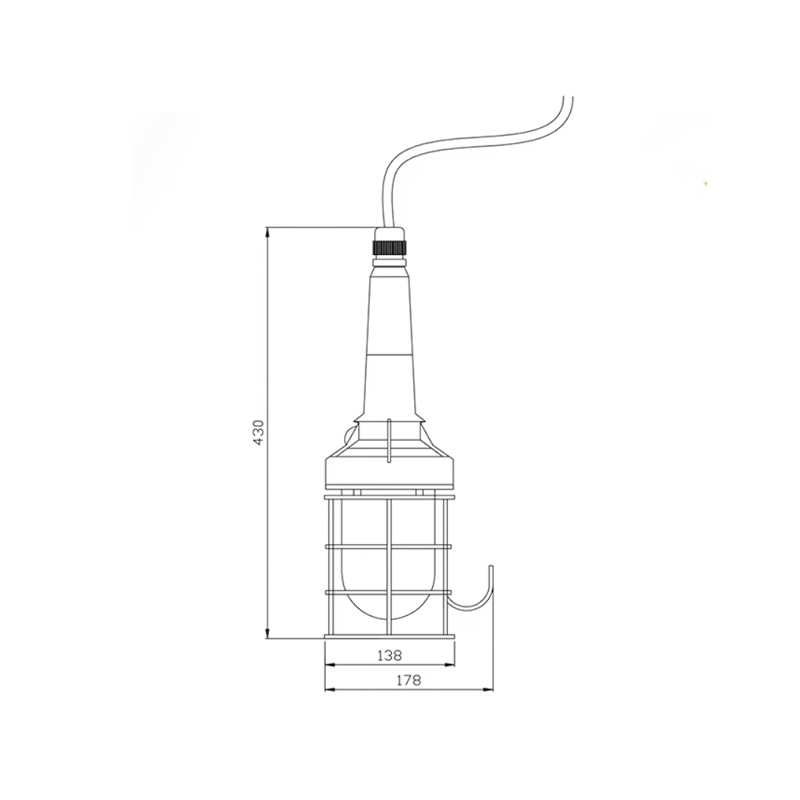

DIMENSIONS IN MM
