It is suitable for installation in Zones 1 and 2 (gas) and Zones 21 and 22 (dust), ensuring safe operation in critical industrial applications.

Sealed construction

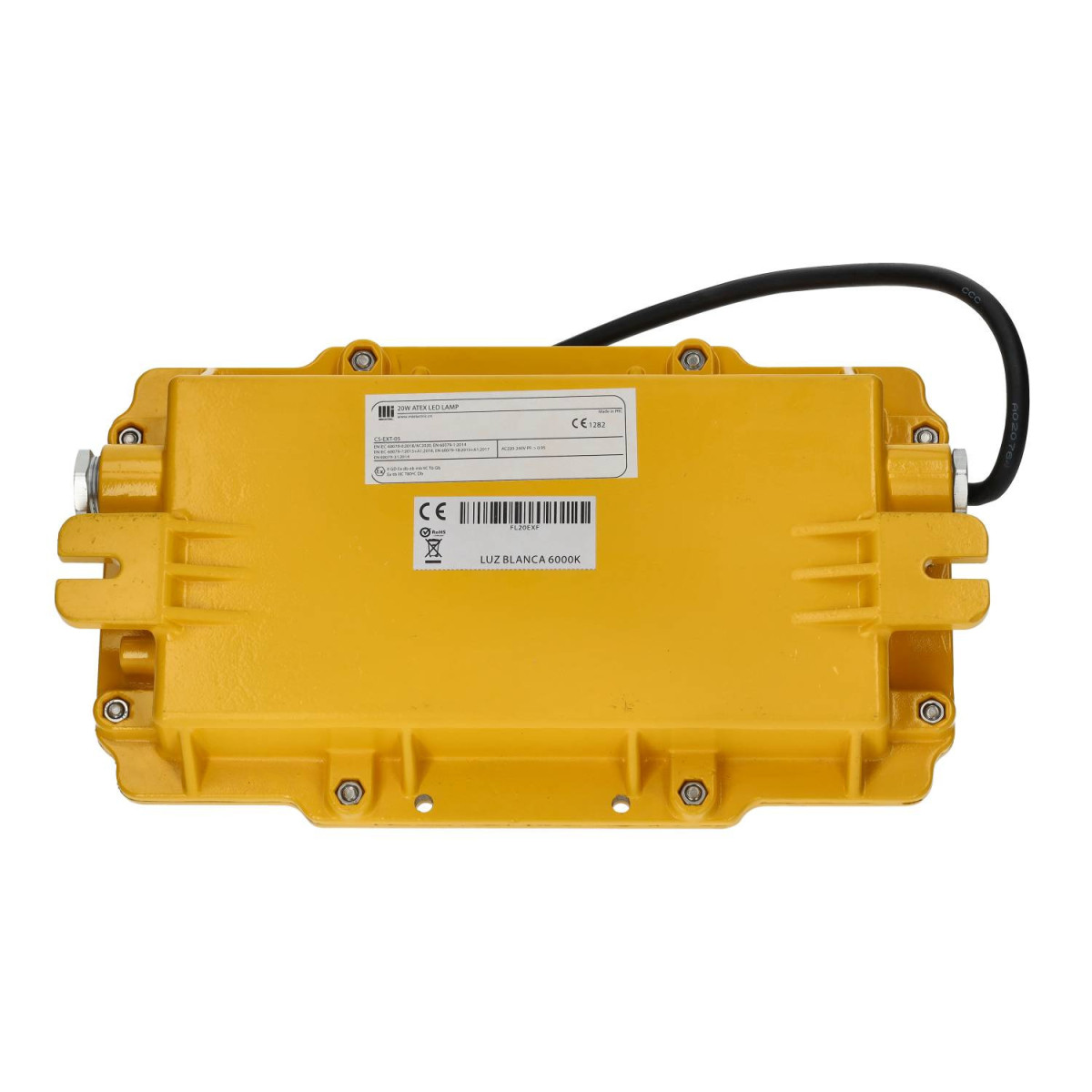

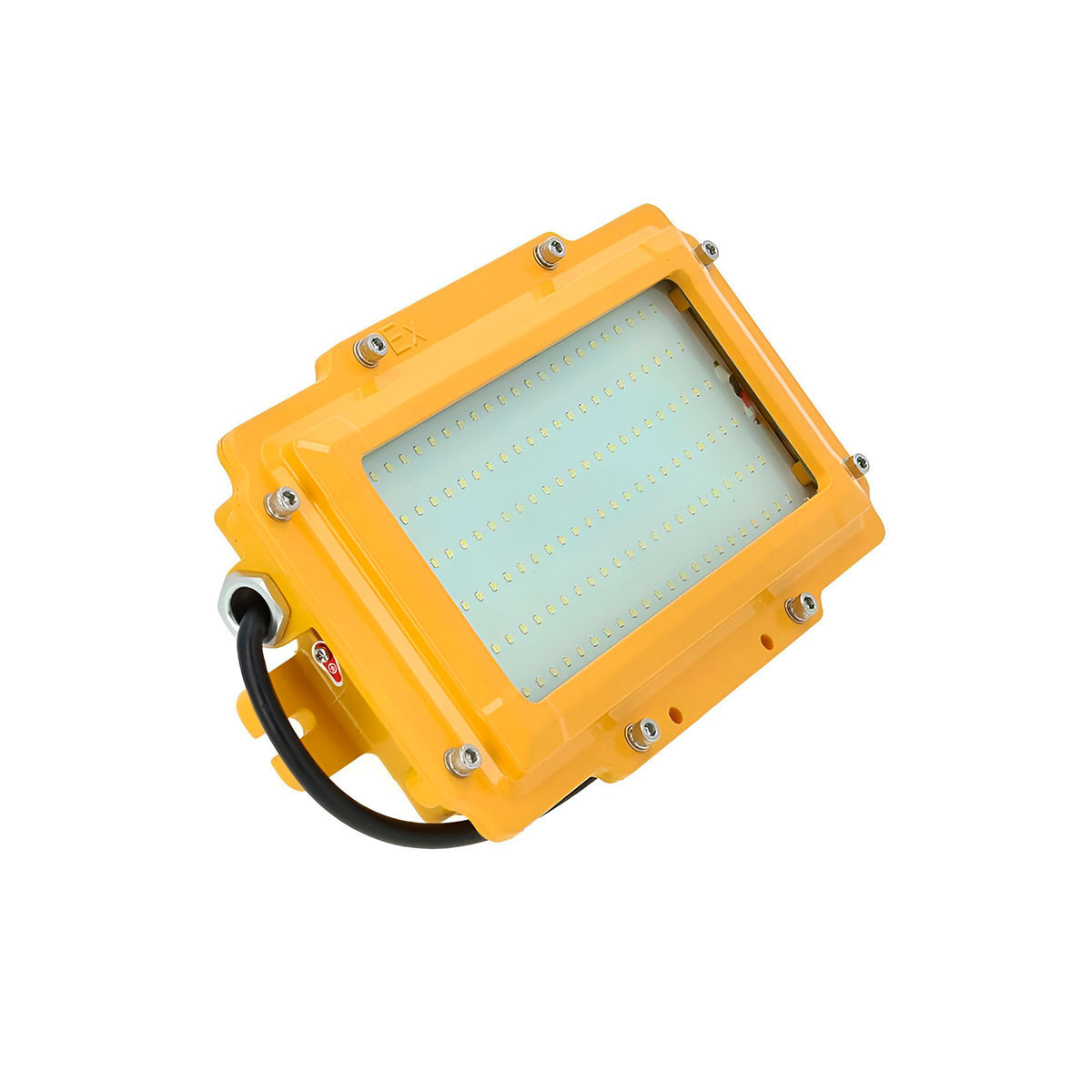

The unit features an aluminum body that provides mechanical strength and effective heat dissipation. It has an IP65 protection rating, guaranteeing protection against dust and water, allowing for both indoor and outdoor installation. Its dimensions are 352 × 200 × 70 mm.

Lighting and performance

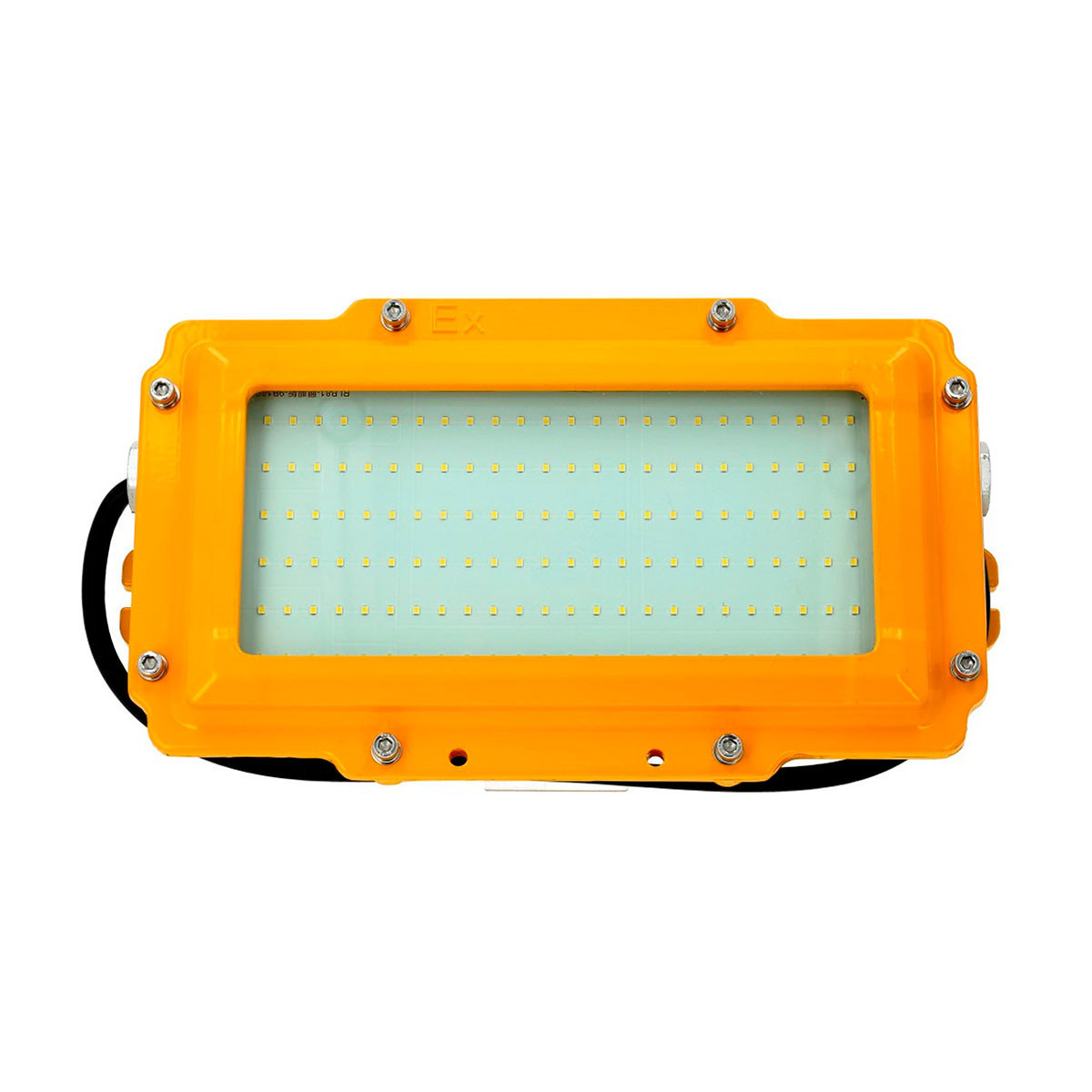

With a power output of 20 W and a luminous flux of 2,000 lumens, it provides adequate lighting for industrial work areas. It emits cool white light (6000 K) and has a 120° beam angle, providing broad, uniform light distribution. It incorporates SMD LED technology and has a power factor of 0.95.

It operates on an input voltage of 220/240 V AC and a frequency of 50/60 Hz, making it compatible with standard electrical grids.

Installation

Designed for surface mounting on walls or ceilings. The power cable is not included; a cable suitable for the installation environment—with a minimum diameter of 7 mm and compatibility with the unit's cable gland—must be used.

Service life and warranty

The floodlight has a service life of up to 50,000 hours and is designed to operate within a temperature range of -20°C to +40°C. It comes with a 5-year warranty.
