Description
Argument
Products Description
APPLICATIONS
1、Suitable for outdoor illumination of emergency rescues, relief works, flood controls, construction works, etc.
2、Ideal for illumination of construction sites in power industry, on railway, fire fighting,oil & gas industry, mining, coal mines, etc.
3、Ideal for large-area temporary illumination of airports, docks, stadiums, squares,roads, public works, etc
FEATURES
1、High luminance, large illumination area
2、Powerful, real savings, environmentally friendly
3、360°degree rotation, wide illumination angle
4、Humanized design, easy to operate
5、Safe, reliable, easy to transport
TECHNICAL DATA
| SFW6130B SPECIFICATION PARAMETERS | ||
| Light fitting | Power | 4x 1000W |
| Luminous flux | 4x110000lm | |
| Voltage | 220V/230V/240V AC50Hz/60 | |
| Adjustable on vertical axis | 0°- 90° | |
| Degree of protection | IP65 | |
| Telescopic mast | Height(hydraulic) | 10m / 2.95m |
| Lifting time | approx. 45s | |
| Closing time | approx. 18s | |
| Horizontal rotation (by hand) | 0°- 360° | |
| Generating set | Model of Kubota generating set | D1105-BG |
| Diesel fuel No. | 0# | |
| Power | 7.2KW(50Hz) | |
| Model of Stanford generating set | PI044F | |
| Fuel consumption | 2L/h | |
| Fuel tank capacity | 80L | |
| Running time | 40h | |
| Voltage | 12V | |
| Noise (7m) | ≤70db | |
| Lighting tower | Close dimension (LxWxH) | 2950mm x 1350mmx 2950mm |
| Open dimension(LxWxH) | 2950mm x 3050 mm x10000mm | |
| Wind stability | Scale8 (75km/h) | |
| Total weight | 1000kg | |
| Maximum towing speed | 80 km/h | |
Tags: Lighting Tower SFW6130B Mobile Lighting Tower
Technical parameter

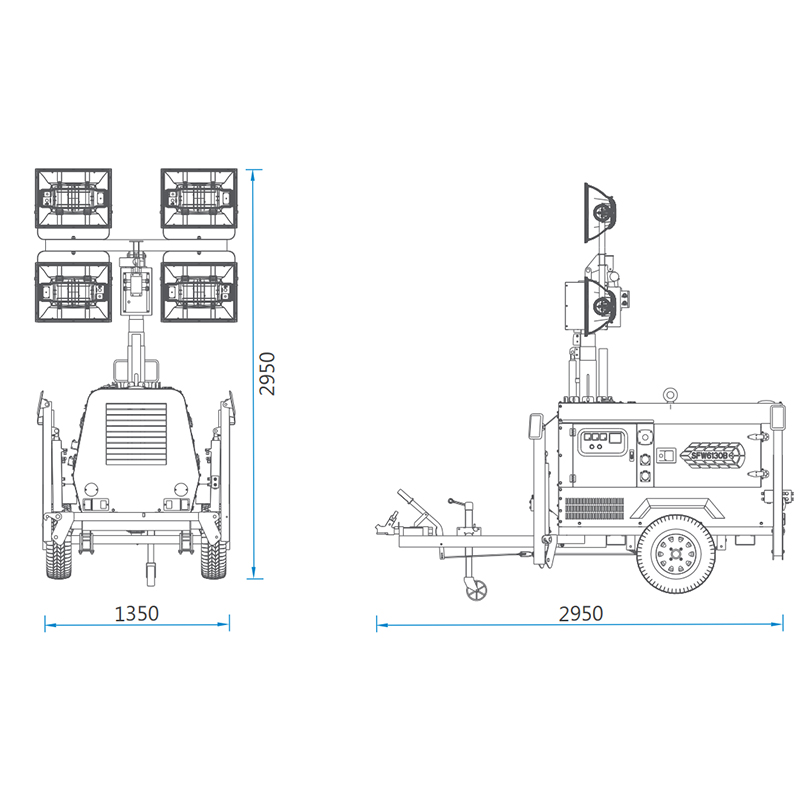

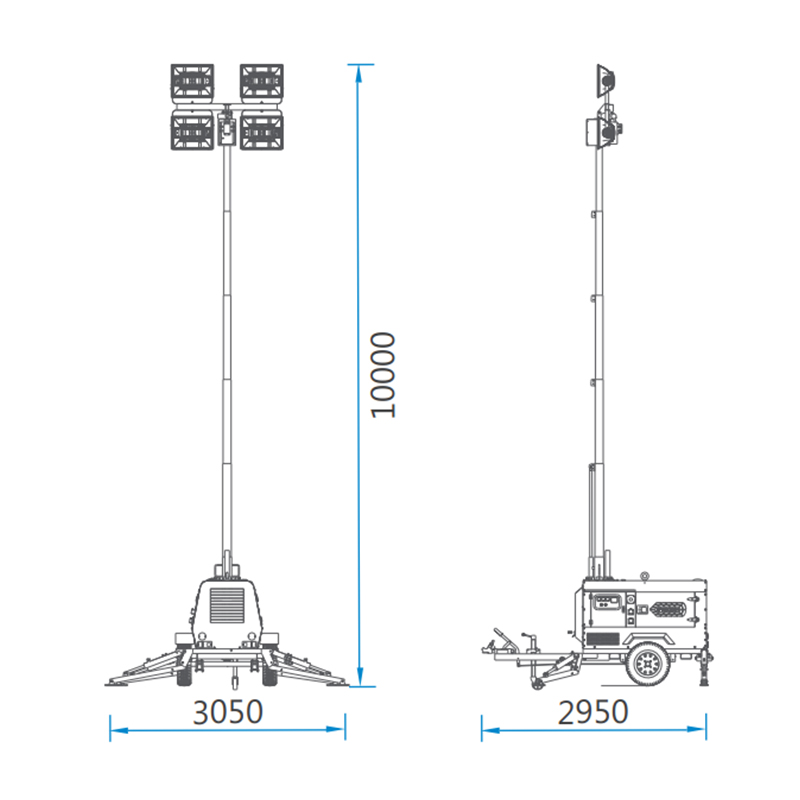

DIMENSION DRAWINGS

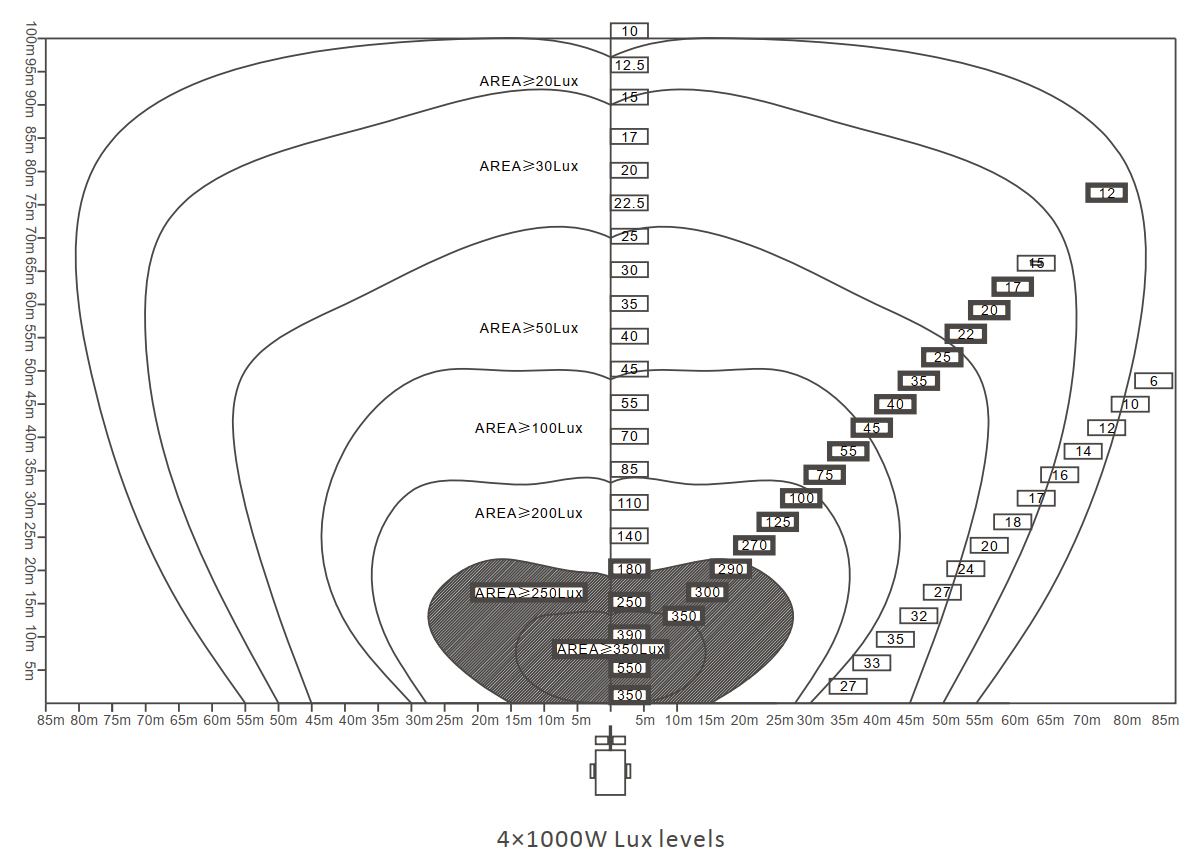

OPTICAL CHARACTERISTICS
