Products Description
APPLICATIONS
Designed for illumination of rescue works,repair works and construction sites.
FEATURES
1、Easy loading onto and unloading from trucks
2、Fitted with wheels for easy ground transport
3、 Maximum height: 10m; horizontal rotation range: 0-358°; vertical rotation range: 0-135°
4、 Maximum illuminated distance: 220m
5、Wind stability up to Scale 8
6、 Operating panel and remote control within 30m allowing for easy operation
7、Video transmission module available for being ordered separately
TECHNICAL DATA
| SFW6131 SPECIFICATION PARAMETERS | ||
| Light fitting | Power | 4x 550W(LED) |
| Luminous flux | 4x77000lm | |
| Voltage | 220V/230V/240V AC50Hz/60 | |
| Degree of protection | IP65 | |
| Rotation angle of light head | Horizontal | 0°-358° |
| Vertical | 0°-135° | |
| Tank capacity | 28 L | |
| Running time | 15 L | |
| Telescopic system | Control method | Electric control and remotecontrol within 30m |
| Lifting system | hydraulic | |
| Maximum height | 10m | |
| Minimum height | 1.4m | |
| Maximum height of | support leg | 1.3m |
| Maximum width | 2.6m | |
| Wind stability | up to Scale 8 | |
Tags: MULTIFUCTIONAL LIGHTING SYSTEM
Technical parameter

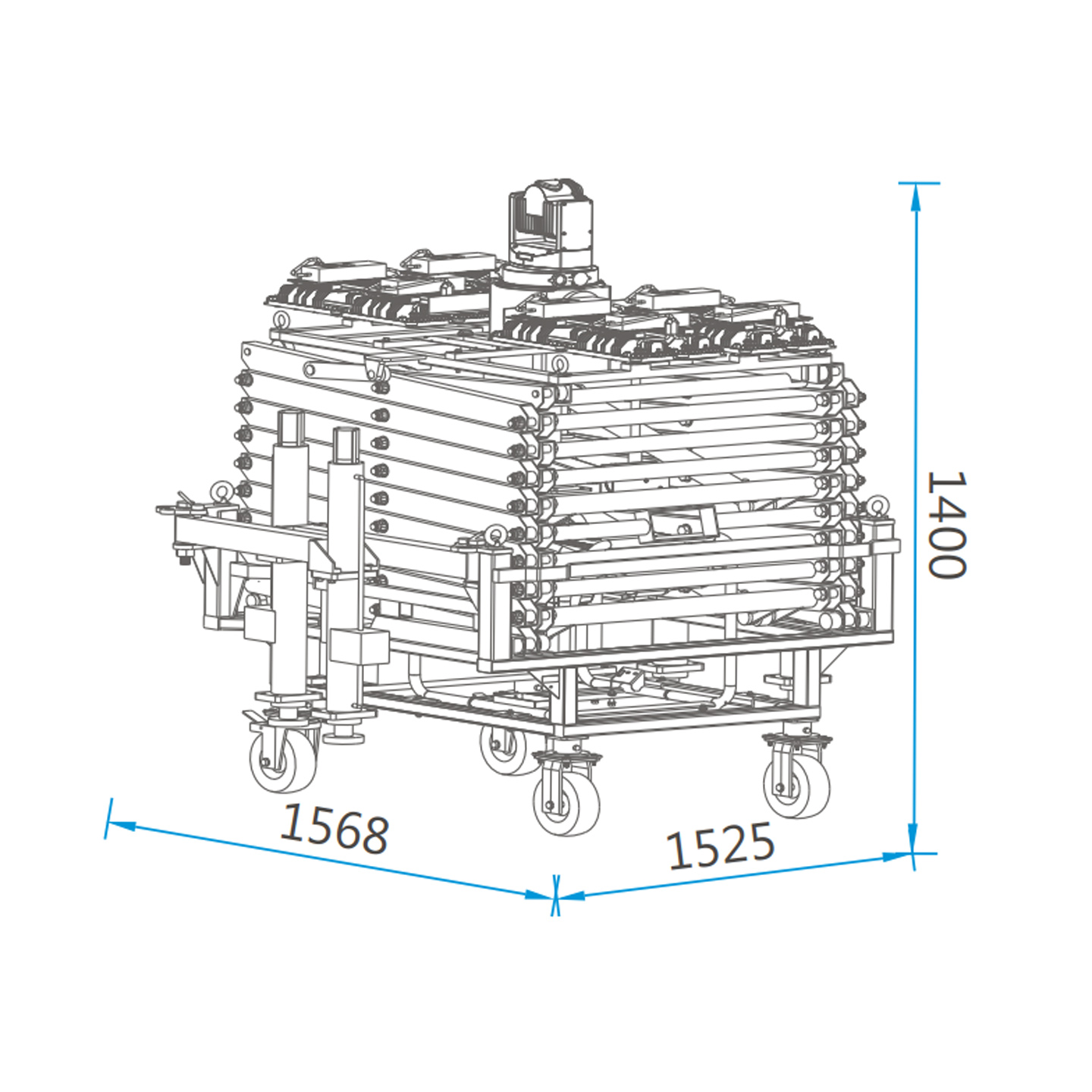

DIMENSION DRAWINGS
